Product Overview

The 3-axis multi-station hydraulic self-centering vise is engineered for high-efficiency batch machining on vertical machining centers and 3-axis CNC machines. Whether you're machining shafts, thin-walled parts, or symmetric workpieces, this vise delivers precise centering and repeatable clamping—batch after batch.



Core Advantages

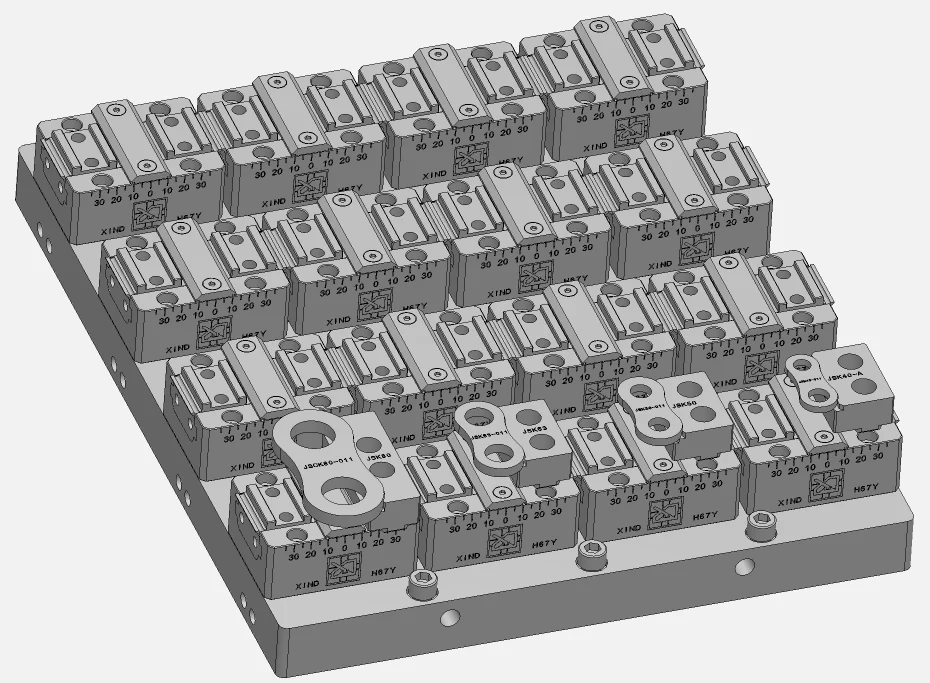

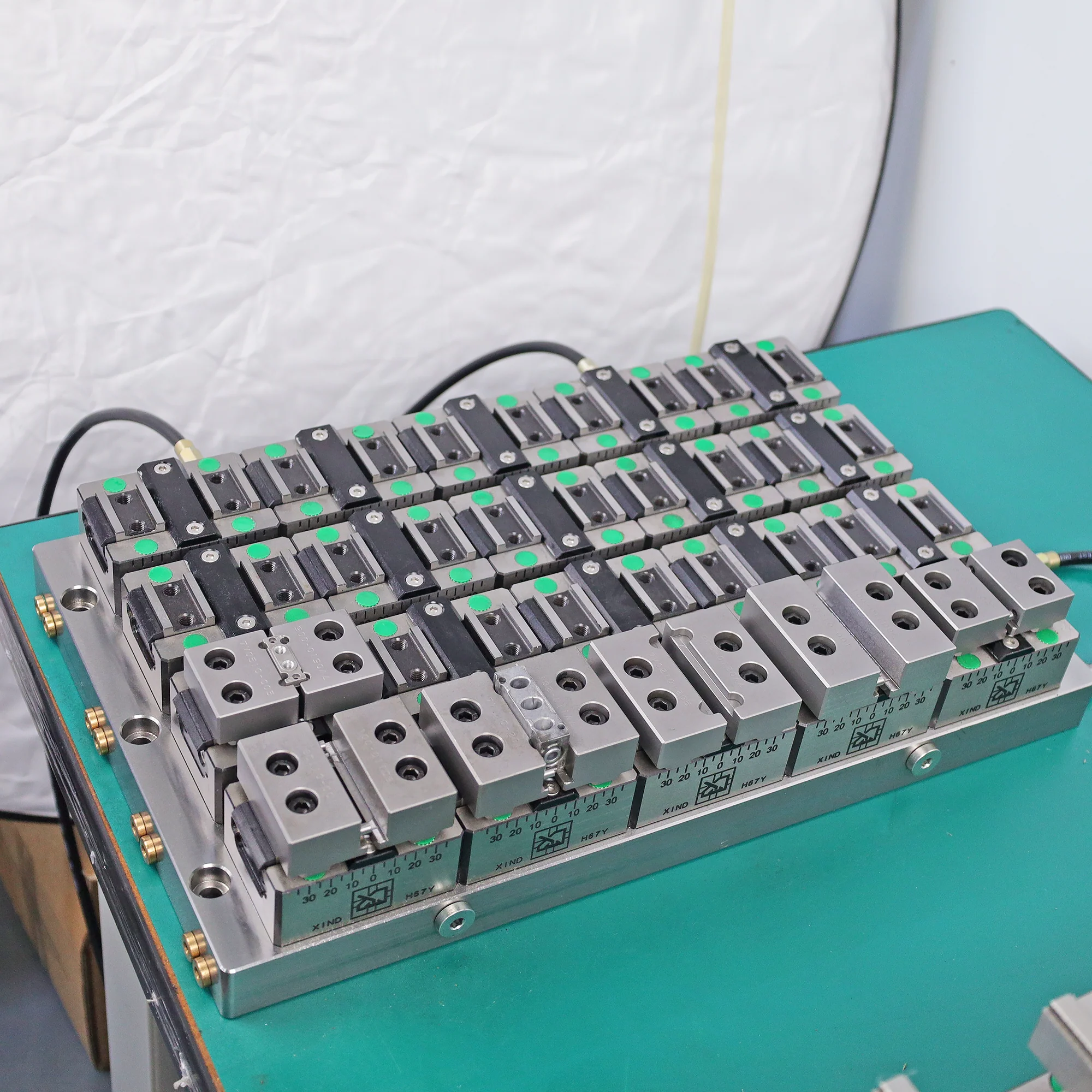

✔ Tailored for 3-Axis CNC MachinesEngineered to maximize working space on 3-axis vertical machining centers. Available in 10-station, 20-station, or fully customized formats, based on your machine’s Y-axis travel and part size.

✔ Hydraulic Self-Centering Mechanism
Ensures each workpiece is centered precisely—no manual adjustment required. Especially critical for shaft-type or round parts, where concentricity and axial alignment are key.

✔ High-Efficiency Batch Setup
One-time setup, multiple parts. Process 10+ parts in a single cycle, significantly boosting spindle utilization and reducing idle time.

✔ Robust & Rigid Construction
Crafted from hardened alloy tool steel with a stress-relieved body, this vise resists deformation under high clamping forces and heavy-duty cutting loads.

✔ Fast Changeover, Zero Downtime
Hydraulic actuation enables rapid clamping/unclamping—ideal for automated lines, robotic integration, or high-mix/low-volume production environments.



Ideal Applications & Workpieces

Shaft-Type Parts: Crankshafts, transmission shafts, and guide rods requiring concentric accuracy
Thin-Walled or Deformable Parts: Aluminum housings, sleeves, and light alloy components
Batch Machining: Automotive parts, aerospace fasteners, medical implants—where high repeatability is non-negotiable
Vertical 3-Axis Machining Centers: Where table space is limited but output demands are high

The self-centering feature ensures each part is clamped identically—maintaining roundness, alignment, and dimensional accuracy.
Manual vises can’t match the repeatability or speed of hydraulic clamping, and with adjustable clamping force, your delicate parts stay protected while your heavy-duty components stay rigidly in place.



Ready to Customize?

Just send us your machine specs or workpiece drawings—we’ll configure the ideal multi-station layout for your 3-axis CNC machine. From compact 10-station arrays to extended 20+ station systems, we help you unlock the true throughput potential of your shop floor.
