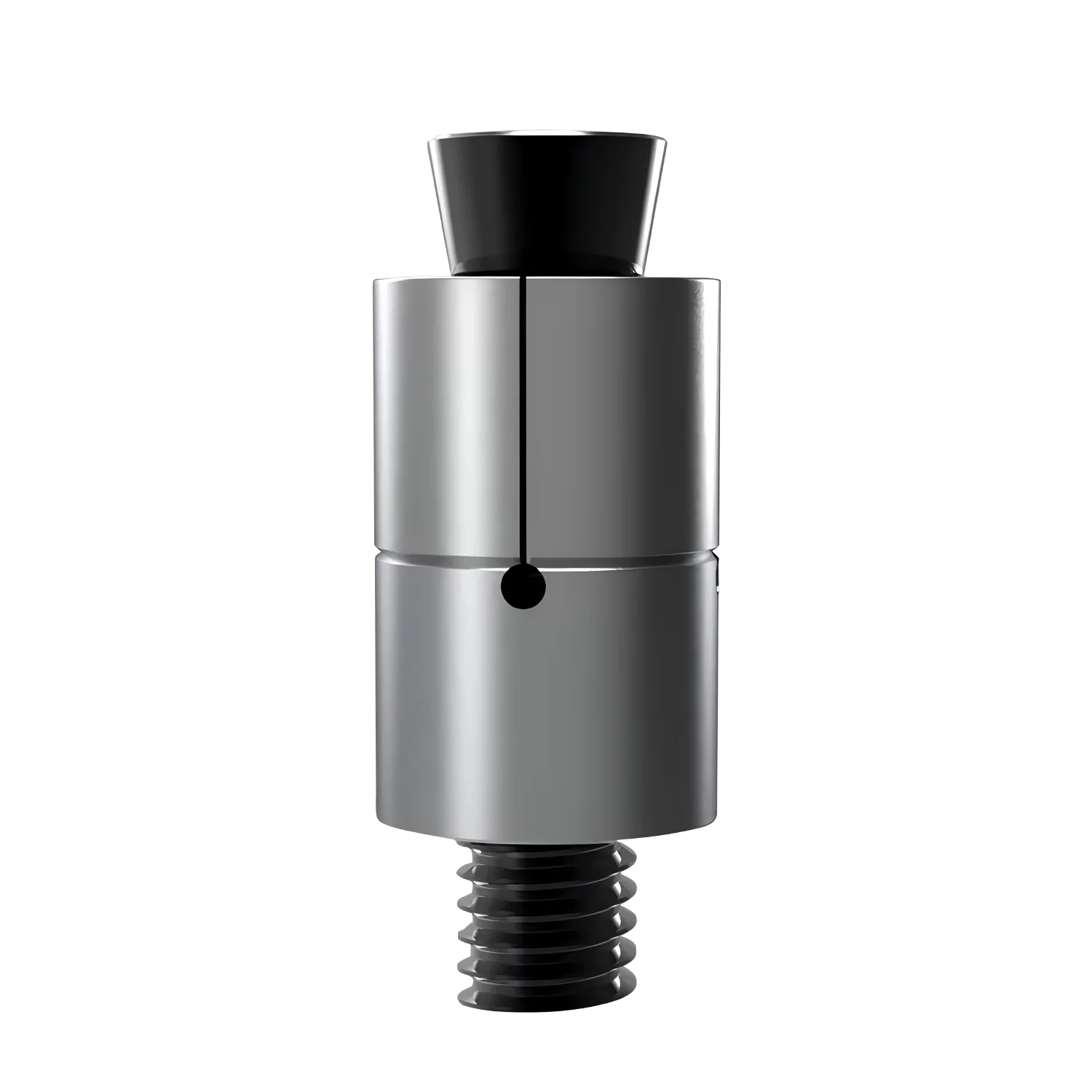

OK Fixture
| Model | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M6 | 14.3 | 5 | 9 | 15 | 22 | 28 | 26 | 15 | 13 | 6.5 | 6.5 |
| M8 | 17.8 | 6 | 11 | 21 | 29.5 | 35.5 | 33 | 18 | 15 | 7.5 | 9.5 |
| M10 | 23.3 | 8 | 15 | 25 | 35 | 41 | 38 | 21.6 | 18 | 9 | 11.5 |
| M12 | 29.3 | 10 | 20 | 29.5 | 41.5 | 47.5 | 43.5 | 27 | 22 | 11 | 13 |
| Model | Clamping Force (kN) | Tightening Torque (N.m) | Max. Hole Depth (mm) | Material | OKP Weight (g) |
|---|---|---|---|---|---|
| M6 | 6.8 | 12 | 12 | 440C | 40 |
| M8 | 16 | 25 | 15 | 440C | 83 |
| M10 | 20 | 54 | 20 | 440C | 137 |
| M12 | 25 | 89 | 25 | 440C | 227 |
| Model | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M6 | 14.3 | 5 | 9 | 15 | 22 | 28 | 26 | 15 | 13 | 6.5 | 6.5 |
| M8 | 17.8 | 6 | 11 | 21 | 29.5 | 35.5 | 33 | 18 | 15 | 7.5 | 9.5 |
| M10 | 23.3 | 8 | 15 | 25 | 35 | 41 | 38 | 21.6 | 18 | 9 | 11.5 |
| M12 | 29.3 | 10 | 20 | 29.5 | 41.5 | 47.5 | 43.5 | 27 | 22 | 11 | 13 |
| Model | Clamping Force (kN) | Tightening Torque (N.m) | Max. Hole Depth (mm) | Material | OKP Weight (g) |
|---|---|---|---|---|---|
| M6 | 6.8 | 12 | 12 | 440C | 40 |
| M8 | 16 | 25 | 15 | 440C | 83 |
| M10 | 20 | 54 | 20 | 440C | 137 |
| M12 | 25 | 89 | 25 | 440C | 227 |
Select Model
From $7.00
Original: $20.00
-65%OK Fixture—
$20.00
$7.00Description
| Model | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M6 | 14.3 | 5 | 9 | 15 | 22 | 28 | 26 | 15 | 13 | 6.5 | 6.5 |
| M8 | 17.8 | 6 | 11 | 21 | 29.5 | 35.5 | 33 | 18 | 15 | 7.5 | 9.5 |
| M10 | 23.3 | 8 | 15 | 25 | 35 | 41 | 38 | 21.6 | 18 | 9 | 11.5 |
| M12 | 29.3 | 10 | 20 | 29.5 | 41.5 | 47.5 | 43.5 | 27 | 22 | 11 | 13 |
| Model | Clamping Force (kN) | Tightening Torque (N.m) | Max. Hole Depth (mm) | Material | OKP Weight (g) |
|---|---|---|---|---|---|
| M6 | 6.8 | 12 | 12 | 440C | 40 |
| M8 | 16 | 25 | 15 | 440C | 83 |
| M10 | 20 | 54 | 20 | 440C | 137 |
| M12 | 25 | 89 | 25 | 440C | 227 |
